2Km-8km Low Latency Full Hd Wireless Transmitter , Microware High Definition Multimedia Interface Video COFDM Transmitter
Introduction

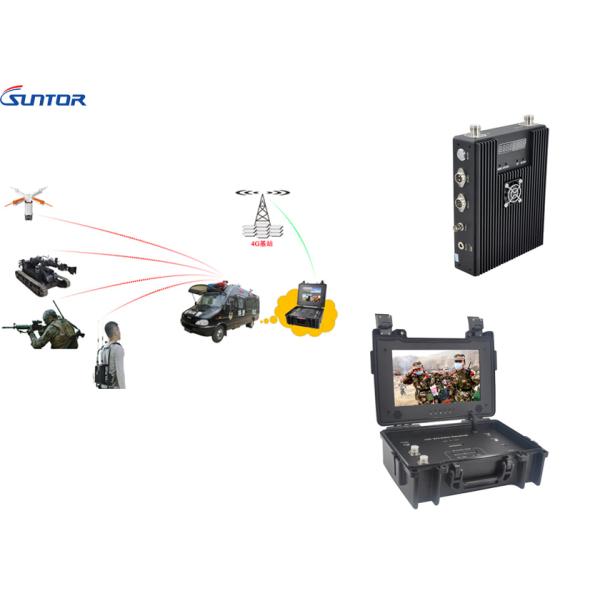

The ST9500DBH transmitter is a body-worn dual audio COFDM video transmitter from SUNTOR, it supports two way voice intercom, designed specifically for government surveillance, law enforcement, border control, internal security, critical infrastructure protection, command, emergency rescue, maritime surveillance video transmission applications.
Features
1.High quality digital video processing , H.264 coding and encoding;
2.Real-time transmission system, delay time for end-to-end is less than150ms;
3.Great action ability, can transmit images voice stably in the condition of high speed movement and multi-path interference.
4.Strong NLOS (non-line of sight) transmission capacity;
5.2km-8km Long distance transmission;
6.Spatial diversity reception ability, support high-speed mobile transmission.
7.Stable signals, image clear and stable, has no mosaic or drag phenomenon.
8.Support multi- video sources, standard definition & high definition compatible.
9.Removable battery, ensure the long working time.
| COFDM duplex mode Bodyworn wireless video transmitter receiver long range |
| Frequency/Video | 300-860MHz |
| Frequency/Data | 200-400 MHz/(option) |
| Constellation | QPSK,16QAM |
| RF Power | 10W |
| Voltage | DC12V |
| Modulation | COFDM |
| Bandwidth | 2/4/6/8 MHz(adjustable) |
| FEC | 1/2,2/3,3/4,5/6,7/8 |
| Type | Bodyworn |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| AV Input (BNC) | Audio:Analog stereo left and right channels |
| Video: for High Definition Multimedia Interface/SDI/ analog camera connection |
| Video | H.264 |
| Data encryption | AES 256 bits |
| RF Interface | N(F) |
| Video Format | PAL/NTSC(auto adaptation) |
| Model | ST9500DBH |
| Data interface | 1 ports,RS485/RS232/TTL @1200/2400/9600/19200pbs |
| Flatness | Full band≤2dB, 8MHz≤0.5dB |
| Carrier | 2K,8K |
| Video resolution | 1080P |
| Case Material | Aluminum alloy, Rain-proof |
| Work environment | -30~70℃ |
| Size | 200*130*60mm |
| Weight | 2kg |
